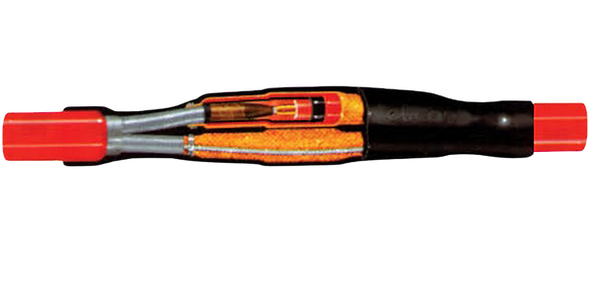

Heat Shrink Straight Joint Kit 3 Core Cable (6.6kV to 36kV)

Medium Voltage Heat Shrink Straight Through Joint Kit

The Heat Shrink Straight Joint Kit for 3 Core Cables (6.6kV–36kV) is a reliable medium-voltage cable jointing solution designed for straight-through connection of XLPE / EPR insulated power cables.

Manufactured by Safe Cable Connect, this kit provides excellent electrical insulation, stress control, moisture sealing, and mechanical protection for long-term performance in demanding environments.

It is suitable for underground, outdoor, and industrial power distribution applications.



Key Features

• Voltage range: 6.6kV to 36kV

• Suitable for 3 Core XLPE / EPR Cables

• Integrated stress control for smooth electric field distribution

• Heat shrink insulation tubes with uniform recovery

• Adhesive lined sleeves for moisture-proof sealing

• UV, weather & chemical resistant outer protection

• Strong mechanical strength after installation

• Low partial discharge performance

• Easy installation using standard heat gun

• Suitable for indoor & outdoor use

Technical Details

• Parameter Specification

• Product Type Heat Shrink Straight Through Joint Kit

• Core Type3 Core

• Voltage Rating6.6kV – 36kV

• Cable Type XLPE / EPR

• Conductor Copper / Aluminium

• Cable Size Range25 sq.mm to 630 sq.mm (model dependent)

• Operating Temperature-50°C to +90°C

• Installation Heat Shrink Method

• Protection Moisture, UV & Weather Resistant



Typical Kit Contents

• Stress control tubes

• Insulation heat shrink tubes

• Semi-conductive tubes

• Heavy wall outer sleeve

• Adhesive sealing sleeves

• Mastic sealing tapes

• Copper screen / mesh

• Cleaning accessories

(Contents may vary based on voltage and cable size.)



Applications

• Medium voltage power distribution

• Underground cable jointing

• Substations and transformers

• Industrial electrical systems

• Infrastructure and utility projects



Ordering Information

Please specify while ordering:

• Voltage class (6.6kV / 11kV / 22kV / 33kV / 36kV)

• Cable size (sq.mm)

• Conductor type (Copper / Aluminium)

• Insulation type

• Armoured / Unarmoured cable
